The UV laser is one of those technologies that can engrave GLASS surfaces without breaking/fracture or overheat the glass. Ultraviolet lasers, UV lasers are better absorbed than other wavelengths and marking techniques
by virtually all materials, requiring less power to produce a clear mark.
UV lasers are suitable for precision applications. Great for delicate, accurate work. Long-life and maintenance free.

UV laser are also perfect for plastics as : Polyethylene, Polypropylene, Polystyrene, Polycarbonate, Colored and clear acrylics, Acetal, Nylon, ABS etc..
Metals : Aluminium, Gold, Platinum, Silver, Titanium, Brass, Stainless steel, Crome etc..
Wood : Mahogany, Walnut, Oak, Ash, Birch, Maple, Cherry, Pine, Spruce, Cedar, MDF, Plywood, Fibreboard etc..
Can engrave on most types of garments.
It mark on different types of Leathers. Can CUT glass, acrylic, plywood etc..depends on power and loops
Pulse width has the biggest effect for "power" on UV lasers. Enter the frequency you want to use and you will get the max Pulse Width.
Frequenzy range 20 - 200 kHz
Input frequency kHz
You can set pulse width from 1 to :
1 is full power and higer value is less power.

These parameters are provided as a "general range" and therefore some testing and experimentation is required.
Individual materials and preference will determine the final combination of settings for each application.


Different Hatch types:
Unidirectional hatch.
The hatch lines will be marked from left to right.		 Bidirectional hatch.
Hatch lines will be marked from left to right first, and then from right to left.		 Ring like hatch.
Fills objects from the outside to the inside like a ring		 Optimization two way hatch.
Similar with bidirectional hatch, but the end of each end		 Dashed Hatch
Hatch fills the object with perforated hatch lines.


Suggested Material Settings - Click on material name to show settings.
  • ENGRAVE CARDBOARD
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    UV 5W 1 90 1000 10 25 1 0.05 210
  • GLASSES CLOTH
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W JPT UV 1 2000 10 0 1 0.03
  • ACRYLIC ENGRAVING
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    3W JPT 1 0 1000 1 40 0.02 A 1
  • WHITE MARKING ON BLACK PLASTIC ABS POLYCARBONATE
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W JPT 1 2000 5 60 0.03 110
  • CRYSTAL K9
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W JPT 1 0 300 10 20 210
  • WOOD
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W JPT 1 0 2000 10 20 0.03 210

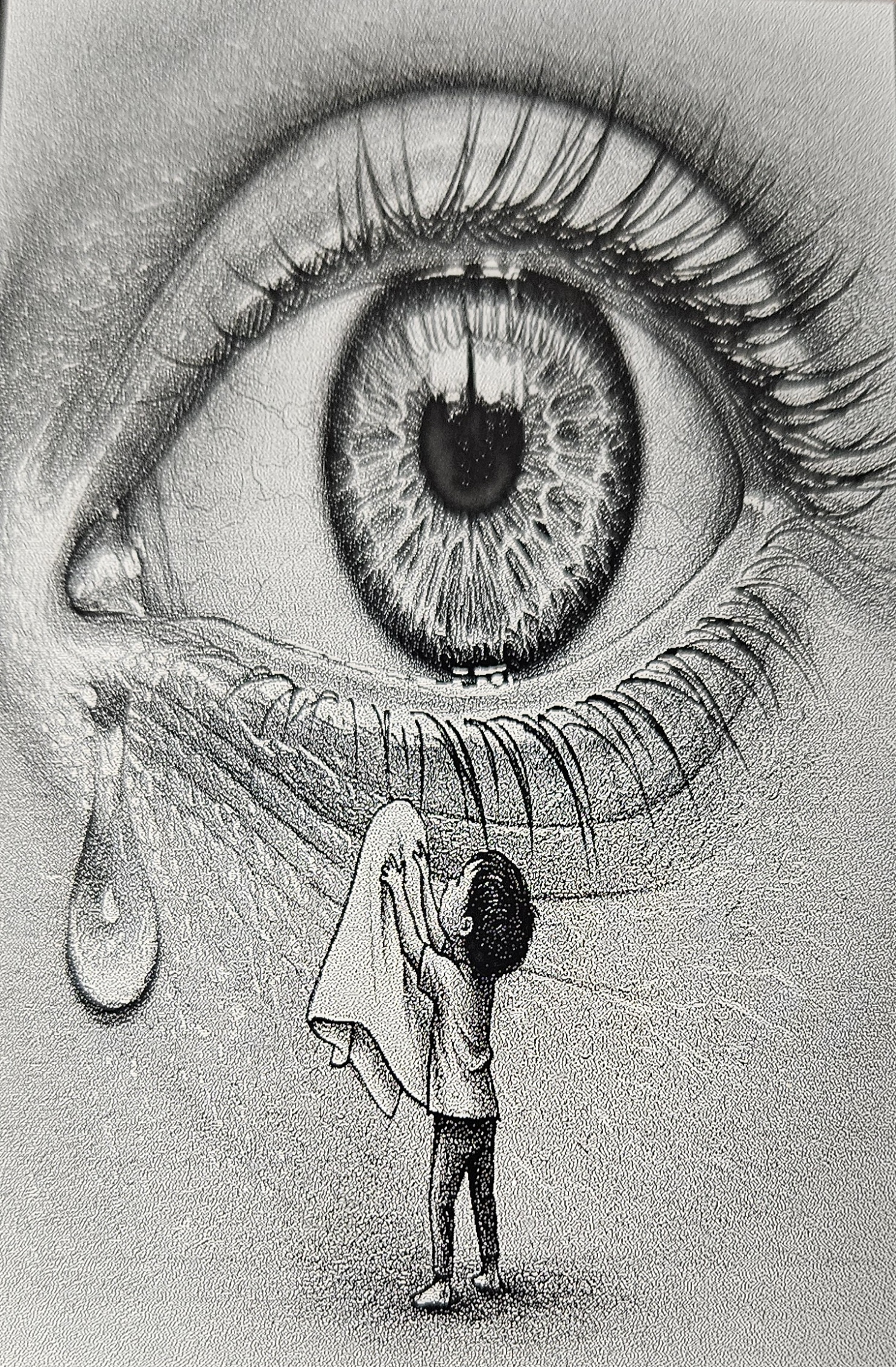

  • PICTURE ON BUSINESS-CARD
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W JPT 1 2000 10 20 Invert, dither, bidir scan, drill mode: 0.2

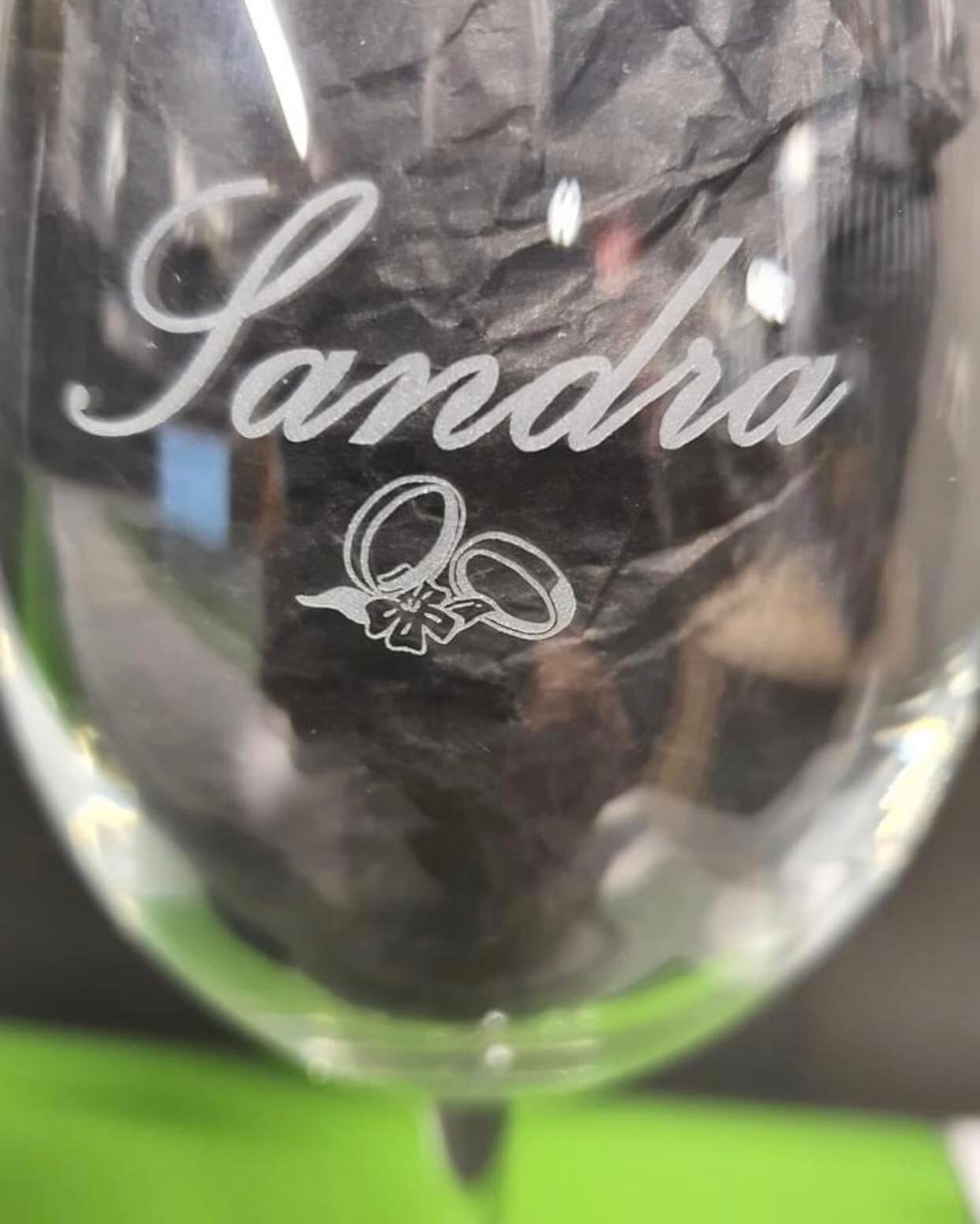

  • WINEGLASS
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W JPT 1 270 200 20 20 110 all calc, cross hatch

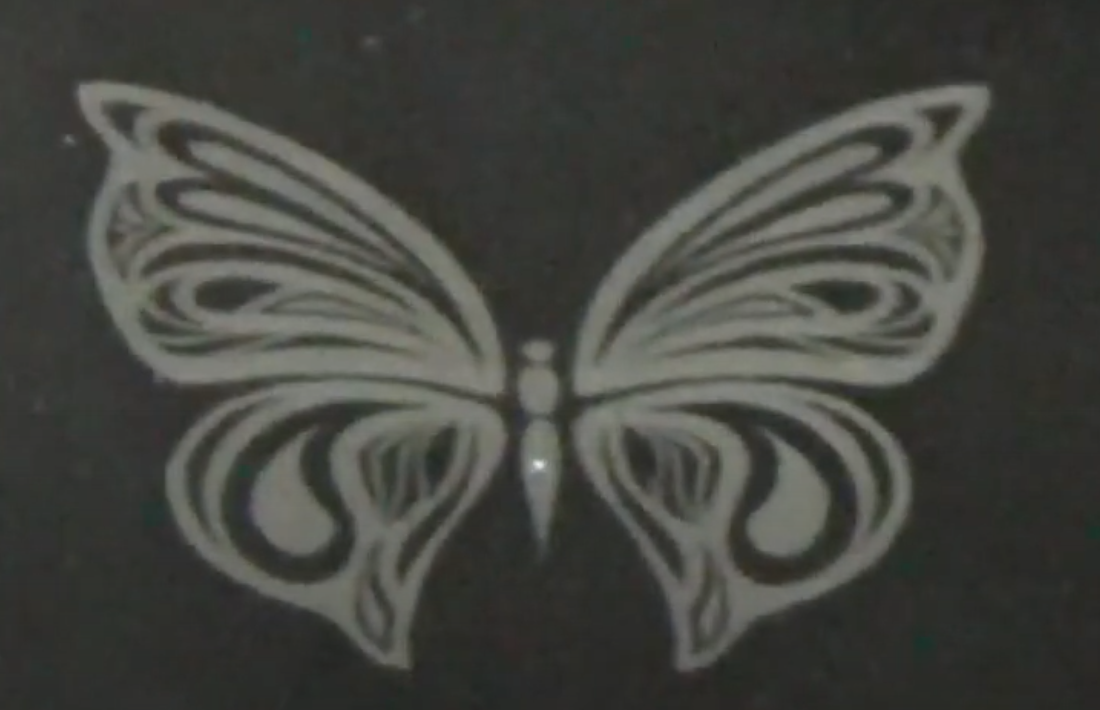

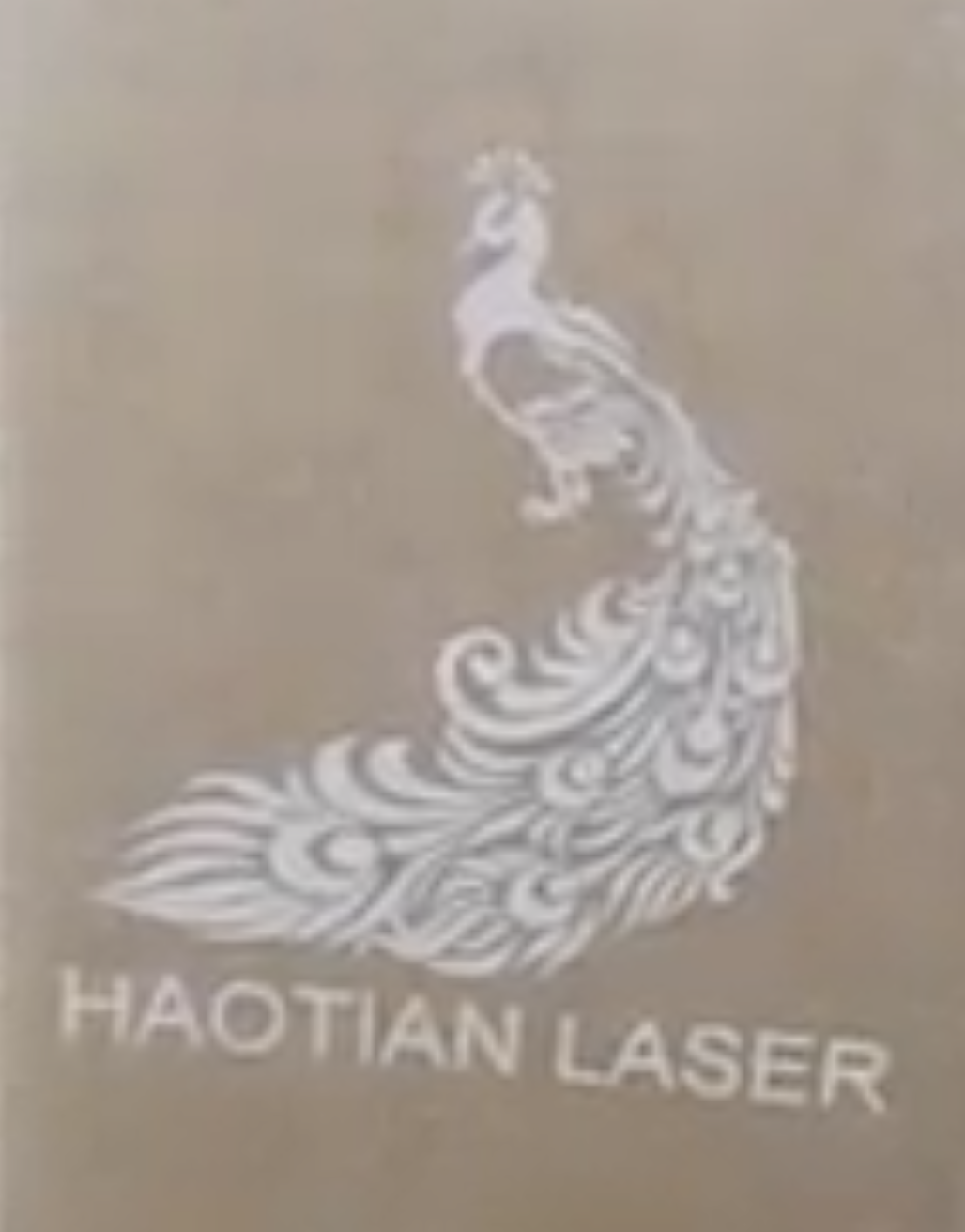

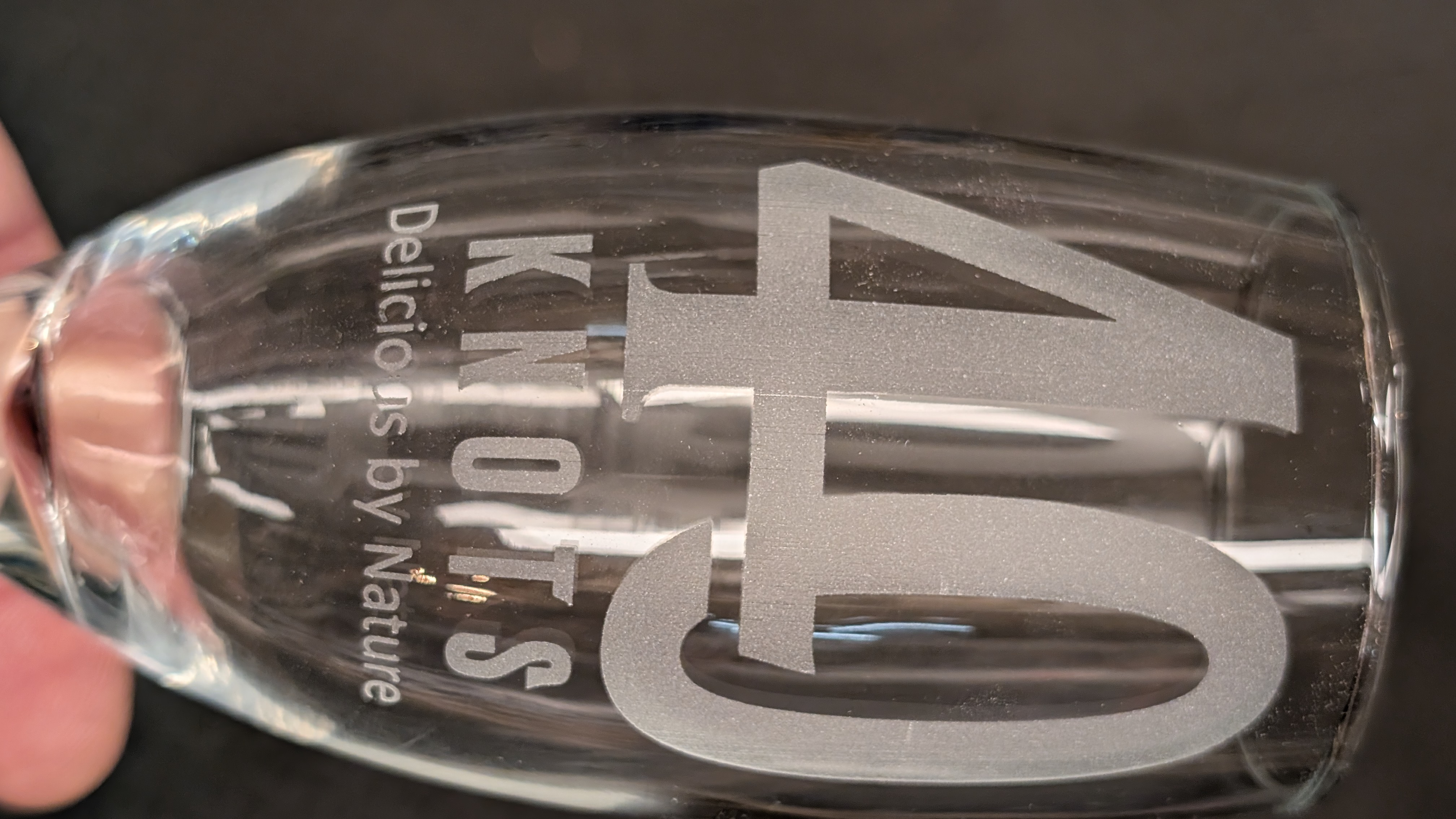

  • GLASS ENGRAVING
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    10W JPT 1 0 300 1 60 0.05 210 enable cross hatch

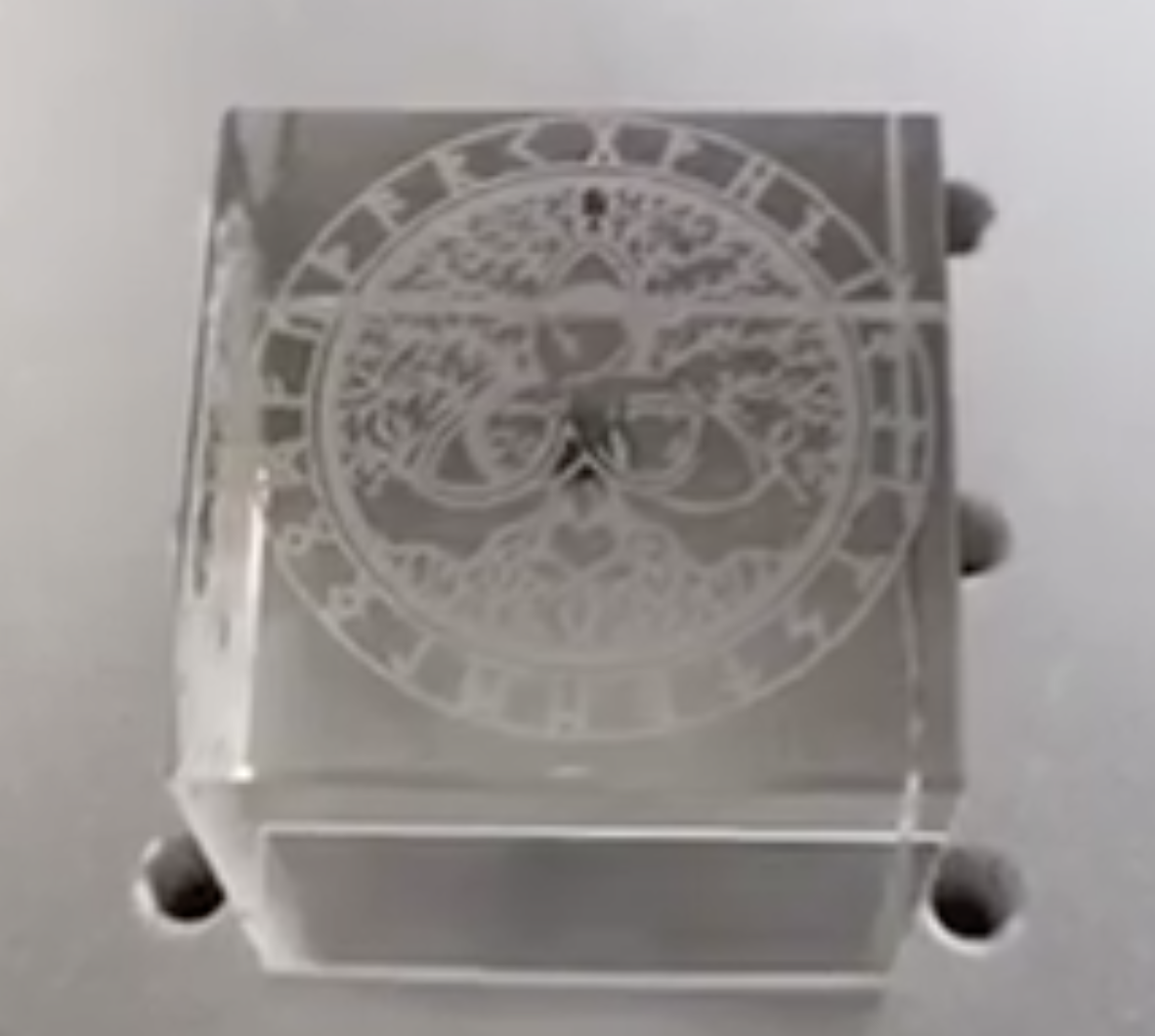

  • CRYSTAL ENGRAVING
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W JPT 1 90 200 18 50 0.2 175

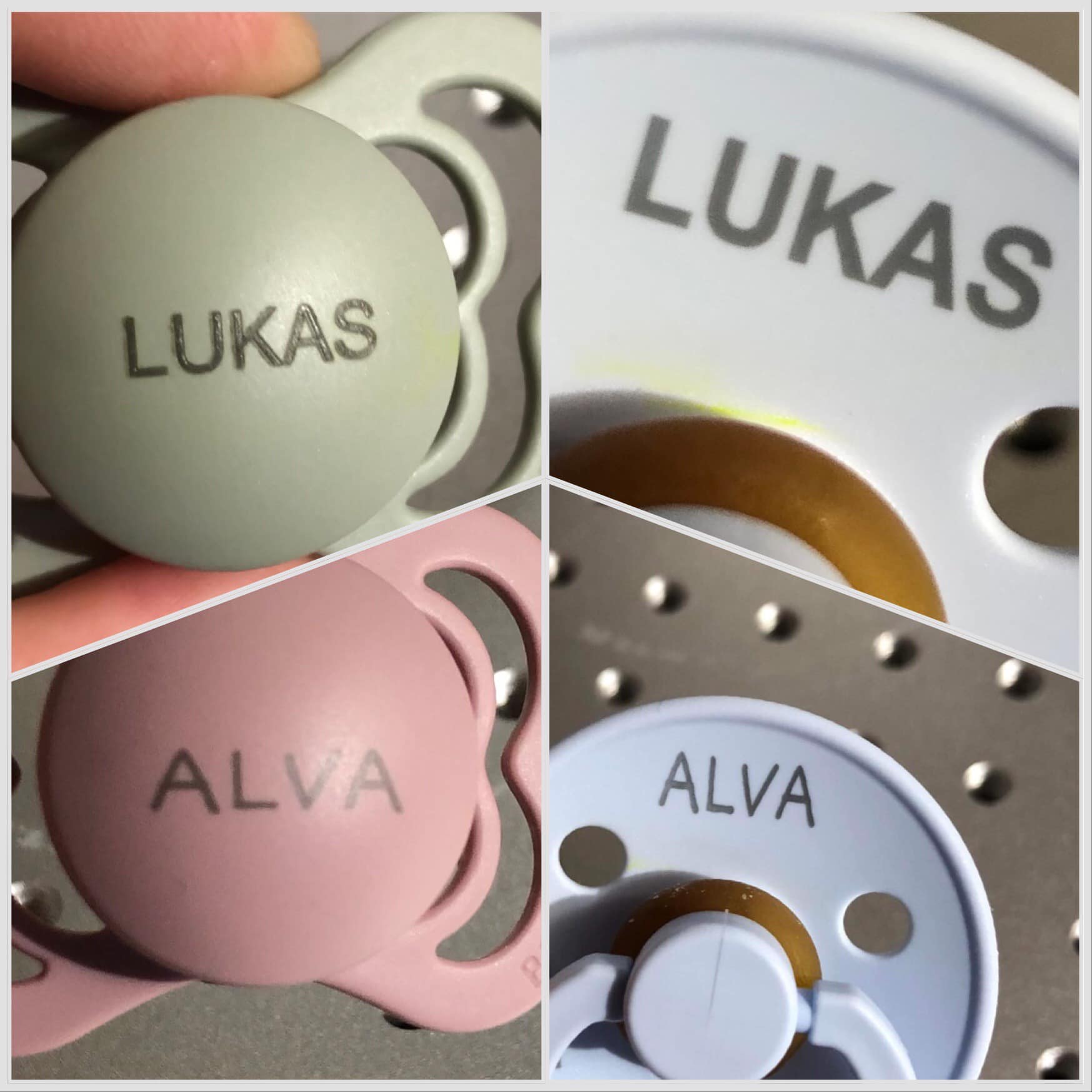

  • PACIFIERS MARKING - POLYPROPYLENE
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W JPT 1 0 1000 10 70 0 0.02 150
  • GLASS WITH A ROTARY
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5w 1 0 200 1 50 1 .025 110 rotary split size .025
  • GLASS MARKING (FEELTEK 3D)
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 0 400 1 50 1 0.03 200
  • CORK 10W
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 10W 1 90 100 1 20 0.03 210
  • BLACK ON BRASS
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 50 3 30 0.02 110
  • CLEAR GOLF BALL
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W uv 1 0 400 10 20 0.04 110
  • SLATE COASTERS
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W JPT 1 150 2 120 0.01 110
  • SLATE COASTERS 10W
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 10W 1 45 500 4 63 0.025
  • BLACK ON STAINLESS STEEL 10W
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 10W 1 100 1 50 0.05 210
  • WHITE OAK WOOD 5W
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 200 50 1 0.02
  • WHITE ON PMAG
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 1000 10 25 0.05
  • BLACK ON WHITE TUMBLERS
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 800 50 1 0.04
  • PP - POLYPROPYLEEN
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 1000 20 4 0.02 110
  • CUTTING GLASS
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 800 1 30 0.01 Wobble .5 & dist. 0.03
  • RUBBER WOOD
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 80 60 10 0.05 110
  • CORK 5W
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 200 1 70 0.05 210
  • GEL BALLPOINT PEN
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 750 40 1 0.02 110
  • DIBOND (ALUMINIUM SANDWICH PANEL)
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 750 40 1 0.02 110
  • BIRCH PLYWOOD
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 250 1 40 0.04 110
  • ABS ENCLOSURE
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 1000 20 2 0.03 110
  • WHITE ON ANODIZED ALUMINIUM
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 500 20 1 0.01 110
  • THIN LEATHER SKIN COLOR
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 400 2 20 0.05 110 #1 enable cross hatch
  • OLIVE WOOD 5W
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 300 50 1 0.02 110
  • DEEP STONE ENGRAVING
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 1000 50 1 5 0.03 110 cross hatch
  • YELLOW TPU EAR TAGS
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 1000 20 1 0.04 110

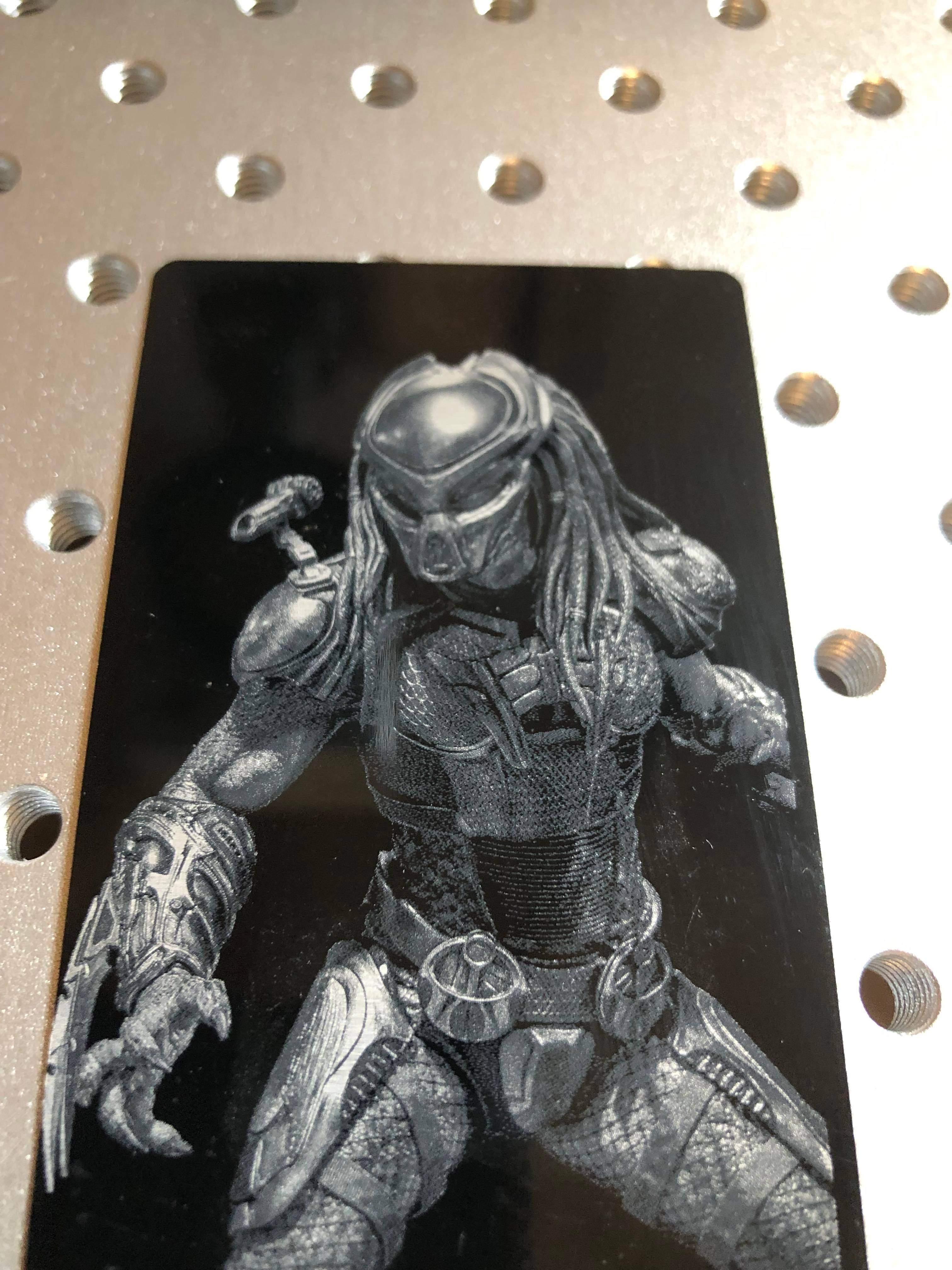

  • WHITE ON BLACK ALU BUSINESS CARD 5W
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 1000 20 1 2 0.01 110
  • JDS PLASTIC CUP
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5w 1 500 20 20 0.03 110
  • TESA 6930 LASERABLE TAPE ENGRAVING
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 1200 1 150 0.05 110
  • TESA 6930 LASERABLE TAPE CUT
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    JPT 5W 1 50 3 50 110

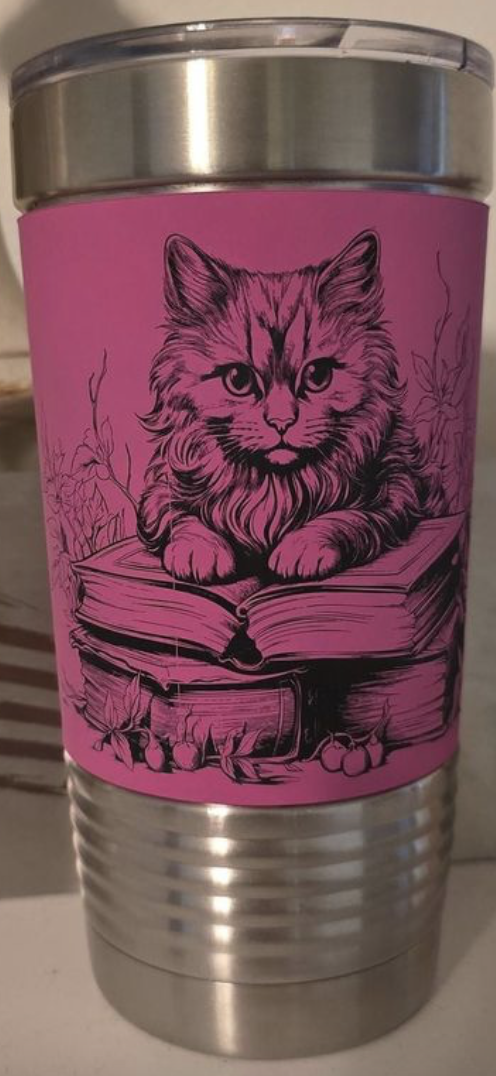

  • BLACK ON TUMBLER
    • UV Model Hatch Angle Speed Q Pulse Freq Type Loop Line Space Lens Type Picture Notes
    5W uv 1 500 3 70 .02 175
